Traditional manufacturing palletizers were built for one product, one case size, one pallet pattern , running the same cycle all day with a single operator watching from the side. That model worked when a bottling plant shipped one SKU per pallet and a 3PL handled one client at a time. E-commerce finished that era. A fulfilment centre now might dispatch twelve different case dimensions in the same hour, with pallet configurations changing every fifteen minutes as orders for different retail customers are built simultaneously. A box palletizer specification that was adequate for traditional dispatch operations is inadequate by a factor of three for e-commerce and 3PL throughput.

This guide walks through what makes e-commerce and third-party logistics operations distinctly demanding for box palletizers, the engineering choices Cybernetik makes in its automatic box palletizer configurations to meet those demands, and the verified technical specifications for each configuration type. Whether you are setting up a new fulfilment operation, expanding an existing 3PL facility, or converting a traditional manufacturing end-of-line into a multi-client dispatch stage, the framework below maps the right box palletizer specification to the problem you actually have.

What Is a Box Palletizer, and Why Does E-commerce Change the Specification?

A box palletizer is an automated tertiary packaging machine that picks sealed boxes or cases from an upstream conveyor and stacks them onto pallets in a defined layer-by-layer pattern for storage, dispatch or cross-docking. In a traditional manufacturing setting, the box arriving at the palletizer is always the same dimension, always the same weight, always destined for the same pallet matrix. In an e-commerce or 3PL setting, none of those three assumptions holds.

E-commerce fulfilment handles variable box dimensions across every despatch wave. A consumer electronics shipment and a personal care shipment do not share a case size; a B2C direct parcel and a B2B retail case do not share a pallet height. The box palletizer in an e-commerce operation must identify the incoming case, recall the correct pallet matrix recipe, and execute that recipe , potentially changing after every few cases. That is a fundamentally different operating mode from a traditional single-SKU manufacturing palletizer, and it demands a different specification approach.

Cybernetik’s automatic box palletizer portfolio addresses e-commerce and 3PL requirements through recipe-driven operation, adaptable end-of-arm grippers, multi-format pallet handling and compact footprint designs that fit warehouse layouts rather than dedicated factory floors. The six-axis robotic box palletizer handles up to 1,200 boxes per hour at 150 kg payload with simultaneous picking of up to 3 boxes; the gantry palletizer handles up to 210 SKUs per hour at 9 seconds cycle time in a low-capex compact footprint suited to smaller 3PL operations. Both integrate with upstream case packing lines and downstream stretch-wrap under unified PLC control.

Five Ways E-commerce and 3PL Operations Change the Box Palletizer Specification ​

---

1. Variable Case Dimensions Across Every Despatch Wave

A traditional manufacturing palletizer is tuned to one case width, one case height, one case weight. Its gripper force, pick height and layer pattern are set once at commissioning. An automatic box palletizer for e-commerce must handle corrugated, rigid and handle-with-care boxes of varying dimensions across the same shift, switching pallet matrix recipes between case types in operator-selected time. Cybernetik’s box palletizer stores HMI recipes for all active box dimensions, reconfiguring end-of-arm tooling and matrix logic without mechanical reset.

---

2. Multi-Client Pallet Building for 3PL Operations

Third-party logistics operators frequently palletize for multiple brand clients simultaneously , building a retail pallet for Client A while a separate accumulation line feeds Client B. A box palletizer configured for multiline operation handles cases arriving from separate upstream conveyors, assigning each to the correct client pallet in the correct stacking pattern from the same physical robot arm. Cybernetik’s robotic box palletizer can be programmed to palletize box variants arriving on separate conveyors onto distinct pallets in the same cycle.

---

3. High-Frequency Recipe Changes Without Production Downtime

In a traditional facility, a SKU change might happen twice a day. In an e-commerce or 3PL operation, a recipe change might happen every fifteen to twenty minutes as despatch waves roll through different product categories. Cybernetik’s automatic box palletizer stores up to 10 SKU matrix formations , the gantry model up to 10 matrix configurations via rotary axis EOAT , and the six-axis model holds a full HMI recipe library switchable without production pause.

---

4. Seasonal Volume Spikes Without Proportional Operator Scaling

E-commerce throughput is not flat: peak season (festival periods, sales events, Q4) routinely triples dispatch volume against mid-year baseline. A palletizer sized to average throughput will starve peak operations; a palletizer sized to peak throughput will be over-specified at baseline. Cybernetik’s six-axis box palletizer at 1,200 boxes per hour with simultaneous 3-box picking gives the throughput headroom to absorb peak-season spikes without adding operators.

---

5. Compact Footprint for Warehouse Integration

E-commerce fulfilment centres and 3PL warehouses are not purpose-built factories. Aisle widths, racking proximity and pedestrian traffic zones all impose constraints that a palletizer designed for a manufacturing floor does not typically face. Cybernetik’s gantry palletizer offers a compact footprint with light curtain safety , no full enclosure required , and a reach envelope optimised for narrow warehouse bays. The six-axis model’s 3600 x 7880 mm footprint fits standard warehouse grid layouts.

---

Multiple Orientation Carton Palletizer

Three Box Palletizer Configurations for E-commerce and 3PL ​

Cybernetik builds box palletizers in three configurations that map to the throughput, footprint and SKU-flexibility demands of different e-commerce and 3PL operation sizes.

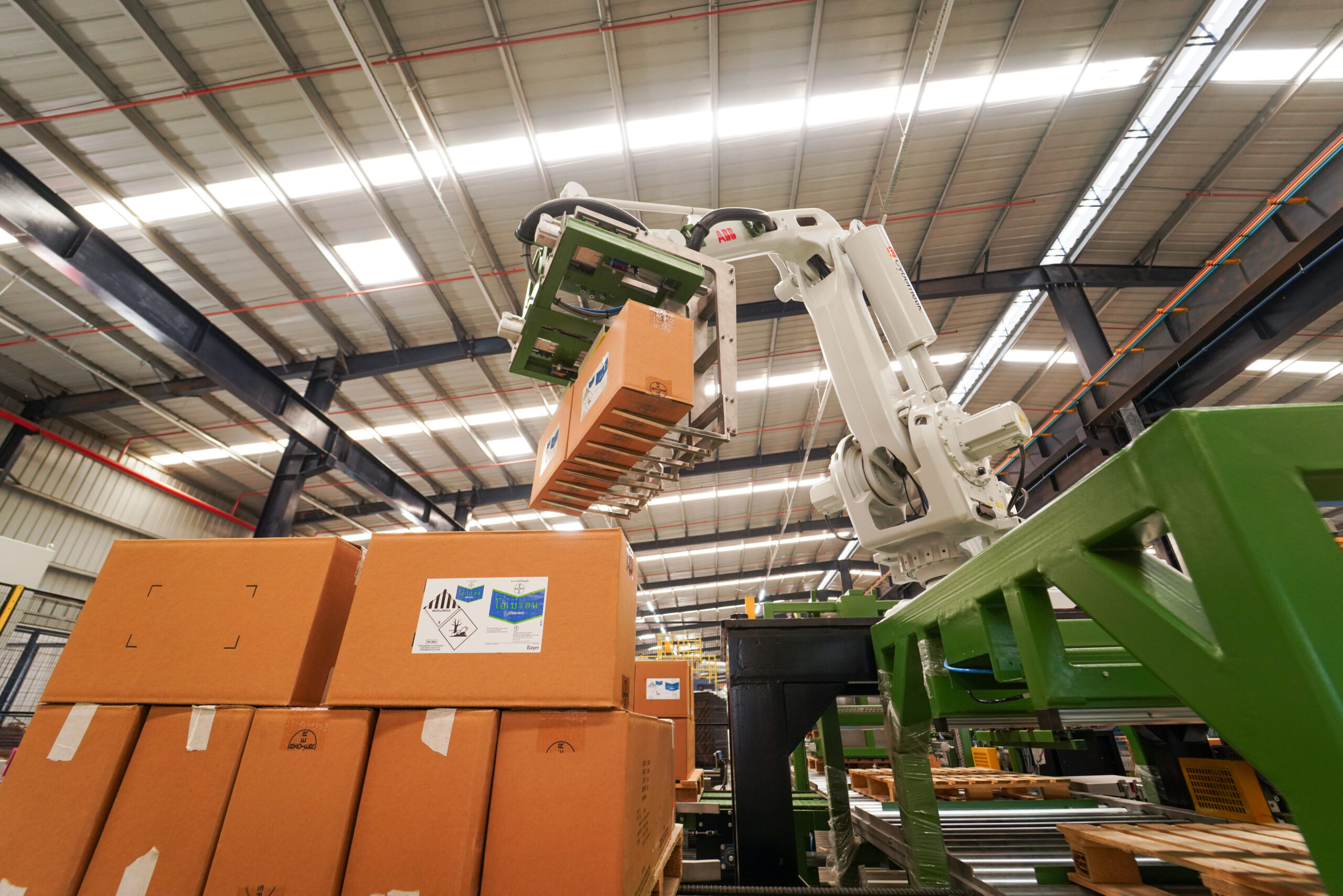

Six-Axis Robotic Box Palletizer , High-Throughput Multi-SKU

The primary configuration for high-throughput fulfilment operations and large-format 3PL facilities. Payload up to 150 kg, throughput up to 1,200 boxes per hour, simultaneous picking of up to 3 boxes, reach up to 3.1 m, stack height up to 1,800 mm. Full recipe-driven multi-SKU operation, servo and pneumatic gripper options for corrugated, rigid and handle-with-care box types, automatic pallet dispenser with 10-pallet magazine, and ISO 12100 safety guarding. Best for large 3PLs and high-volume e-commerce despatch facilities.

Gantry Box Palletizer , Compact Low-CAPEX for Mid-Size 3PL

Cybernetik’s gantry box palletizer delivers 210 SKUs per hour at 9 seconds cycle time, with 2,000 mm maximum pallet height and up to 10 SKU matrix formations via rotary axis end-of-arm tooling. The 3-axis servo-actuated system requires only 10 kW power and one operator for pallet changeover, with light curtain safety that allows compact installation without full enclosure. CAPEX is lower than six-axis, OPEX is lower than manual. Best for mid-size 3PL operations handling up to 1,500 SKUs per day.

Multiline Box Palletizer , Simultaneous Multi-Client Lines

For 3PL operations running two or more parallel inbound conveyor lines from different brand clients, Cybernetik configures multiline box palletizers where a single robot arm (or paired arms) handles cases arriving on separate conveyors, assigning each to the correct client-specific pallet in the correct recipe-defined matrix. This eliminates the need for a dedicated palletizer per client line, reducing both capital outlay and warehouse floor allocation per client.

Box Palletizer Configuration Comparison for E-commerce and 3PL

The table below compares the three box palletizer configurations against the parameters most relevant to e-commerce and 3PL specification decisions.

Specification	Six-Axis Robotic	Gantry (Compact)	Multiline
Throughput	Up to 1,200 boxes/hr	210 SKUs/hr (9 s/cycle)	Line-count dependent
Payload	Up to 150 kg	Format-matched	Up to 150 kg
Simultaneous Pick	Up to 3 boxes	1 box per cycle	1–2 per arm
Max Pallet Height	1,800 mm	2,000 mm	1,800 mm
SKU Matrix Formations	Full HMI recipe library	Up to 10 via rotary EOAT	Per-client recipes
Footprint	3,600 × 7,880 mm	Compact; no full enclosure	Scaled to line count
Best Operation Size	Large 3PL / high-volume e-com	Mid 3PL / up to 1,500 SKU/day	Multi-client parallel lines

Box Palletizer Configuration Comparison for E-commerce and 3PL

Box and case types handled

Pallet formats and automatic handling.

E-commerce and 3PL integration scope

Upstream: shared PLC integration with case packing machine or fulfilment conveyor infeed
