For any bottled beverage, dairy or bottled-drink manufacturer, the palletizer is the final machine that can lose production time before dispatch. It accepts sealed cases from the upstream case packer, stacks them onto pallets in a defined layer pattern, and transfers each loaded pallet to the dispatch or stretch-wrap area , a cycle that sounds routine until your line is running 1,200 cases per hour across four bottle SKUs, three pallet formats and a case packer running continuously behind it. At that point, a bottle palletizer that cannot keep up, cannot adapt to format changes quickly, or cannot run safely without constant operator attention becomes the single constraint on everything the filler, labeller and case packer have already done right.
This guide explains what a modern bottle palletizer needs to do well, the configuration choices between six-axis robotic, gantry, cobot and high-level options, the verified technical specifications from Cybernetik’s palletizer portfolio, and the integration requirements that connect the palletizer to upstream bottle case packing and downstream stretch-wrapping. Whether you are specifying a first-time bottle palletizer investment or evaluating a replacement for an ageing conventional unit, the engineering framework below brings the key decisions into focus.
A bottle palletizer is a tertiary packaging machine that takes sealed corrugated cases of bottles from an upstream conveyor , cases filled by a bottle case packer or case packing machine , and stacks them onto pallets in a recipe-defined layer-by-layer matrix for storage or dispatch. The pallet exits the palletizer as a stable, uniformly stacked unit ready for stretch wrapping and forklift transfer. Bottle palletizers sit at the very end of the packaging line and are the last piece of equipment that determines whether the line’s throughput translates into shipments.
What distinguishes a bottle palletizer from a generic carton or box palletizer is the upstream context: bottle lines tend to run at higher continuous cadence, with taller and heavier case weights (glass bottles in particular), and with SKU variation that demands rapid format changeover. A bottle palletizer engineered for beverage applications must handle these conditions across shifts without throughput decay, surface damage to cases, or pallet instability that causes downstream handling failures.
Cybernetik’s bottle palletizer portfolio is built on a six-axis robotic platform capable of palletizing up to 1,200 boxes per hour with a 150 kg payload, simultaneous handling of up to 3 boxes per cycle, servo and pneumatic end-of-arm grippers, automatic pallet dispensing, and recipe-driven matrix formation adjustable from the HMI. The platform integrates with upstream case packing and downstream stretch-wrapping under a single line-control architecture, and is built to ISO 12100 safety standards with enclosed guarding and interlocked access points.
1. Coordinated Infeed from the Upstream Case Packer
The bottle palletizer’s cycle time is set by the upstream case packer’s output cadence. A palletizer that cannot absorb upstream surges without stalling , or that cannot slow safely when the case packer pauses for SKU changeover , creates wave-pattern instability that propagates back through the entire line. Cybernetik’s bottle palletizer integrates with the upstream case packer for bottles and case packing machine through shared PLC logic, synchronizing infeed conveyor speed to packer output in real time.
2. Precise Pallet and Case Positioning Before Each Pick
Palletizer accuracy depends on both the pallet and the incoming case being at a known reference position before the robotic arm attempts a pick. Cybernetik’s bottle palletizer uses dedicated reference systems for both , pallet positioning on the pallet infeed conveyor and case registration on the case conveyor , ensuring pick accuracy within millimetres across 1,200 cycles per hour. Without this dual-reference design, accumulated positioning error causes edge-of-pallet overhangs that fail during stretch wrapping or transport.
3. Simultaneous Multi-Case Picking for High Throughput
At 1,200 boxes per hour, picking one case at a time is rarely fast enough. Cybernetik’s robotic bottle palletizer uses servo and pneumatic end-of-arm grippers capable of picking up to 3 boxes simultaneously, completing each palletizing layer in fewer arm cycles. The grippers are designed for corrugated, rigid and handle-with-care box formats, adaptable between case weights and dimensions through recipe selection.
4. Recipe-Driven Matrix Formation for Multi-SKU Lines
Different bottle SKUs produce different case dimensions, different case weights and different optimum pallet stacking patterns. A bottle palletizer that requires manual matrix reconfiguration between SKUs loses production time on every format change. Cybernetik’s bottle palletizer stores all matrix recipes in the HMI , layer pattern, pallet type, stack height, rotation sequence , and switches between them in operator-selected recipe time, not shift-reset time.
5. Automated Pallet Supply and Completed-Pallet Discharge
A bottle palletizer that requires manual pallet loading or pallet removal is not genuinely automated at the production rates beverage lines run. Cybernetik’s automatic pallet dispenser holds up to 10 pallets per magazine load, releasing one pallet at a time to the palletizing station. Completed pallets transfer on roller conveyor to the downstream stretch-wrap station without operator intervention, maintaining continuous operation through pallet-change cycles.

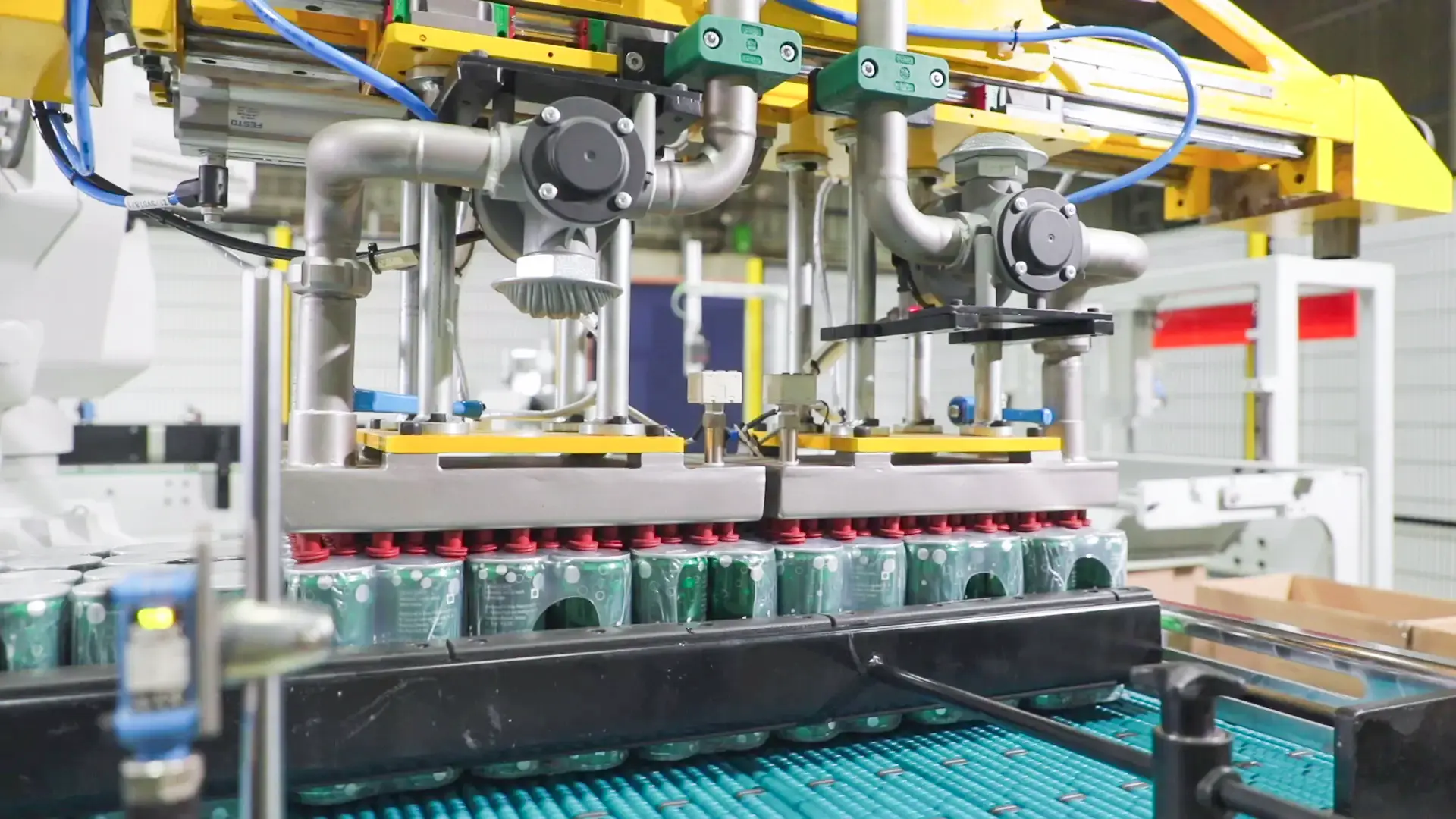

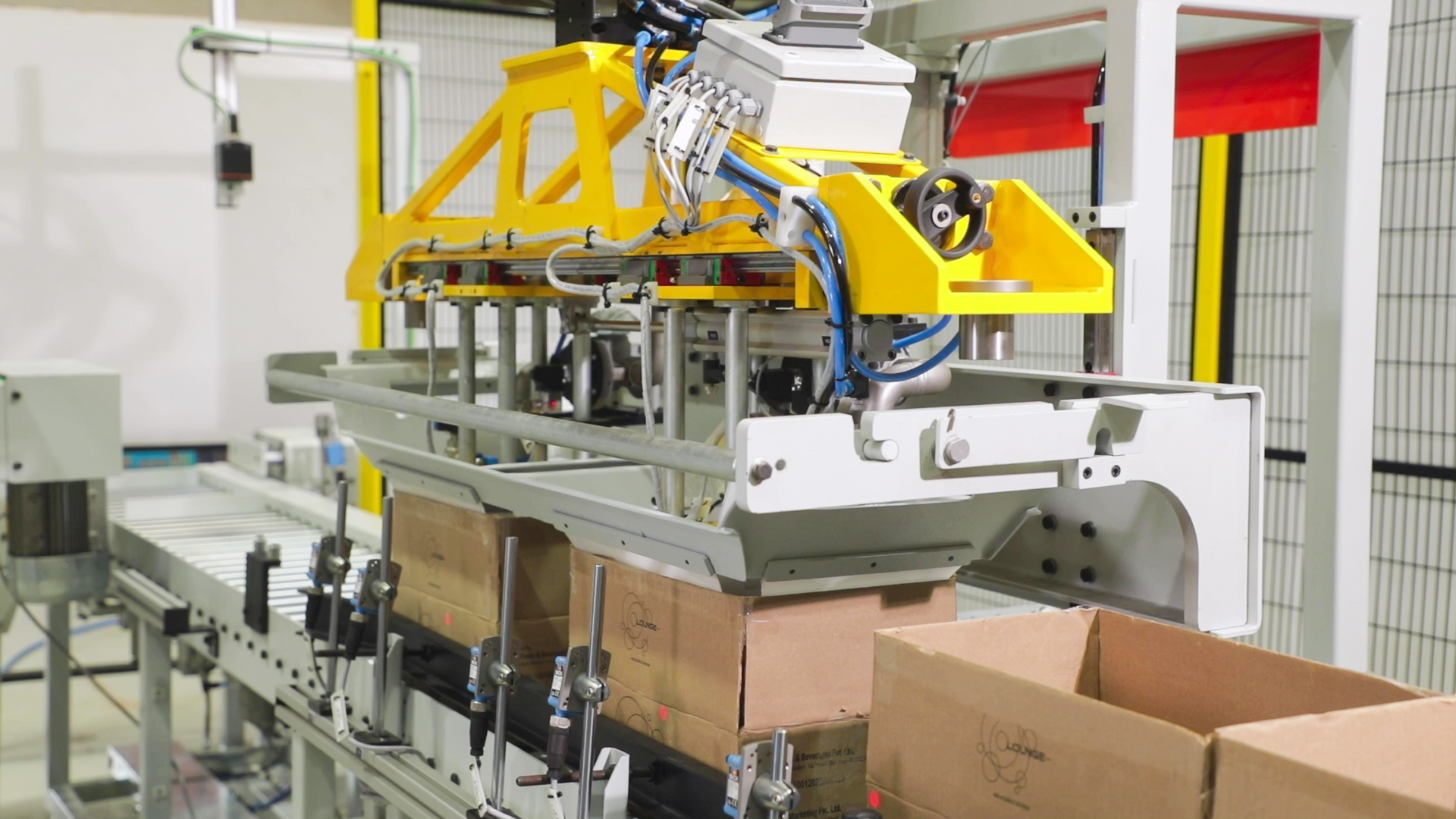

Case Packer for Shrink Packs & Bottles
Cybernetik builds bottle palletizers in three primary configurations. The right choice follows throughput requirement, line layout and SKU flexibility needs.
Six-Axis Robotic Bottle Palletizer
The primary configuration for beverage, dairy and bottled FMCG lines. Six-axis articulated arm with payload up to 150 kg, throughput up to 1,200 boxes per hour, simultaneous handling of up to 3 boxes per cycle, reach up to 3.1 m and stack height up to 1,800 mm. Full recipe-driven multi-SKU flexibility, servo/pneumatic gripper options, auto pallet dispenser and ISO 12100 guarding. Best for mid-to-high volume lines with SKU variety.
Gantry Palletizer
A linear overhead gantry-based palletizer for high-throughput single-line applications where floor footprint constraint is a design driver. Cybernetik’s gantry palletizer configuration suits very high continuous throughput on a single SKU where six-axis reach or cycle time is the bottleneck. Lower recipe flexibility than six-axis but suited to stable, high-volume single-format bottle lines.
Cobot Palletizer
A collaborative robot palletizer for lower-throughput, operator-proximate applications where conventional guarding would reduce floor flexibility. Cybernetik’s cobot palletizer configuration operates within defined safety zones that allow partial operator access, making it suitable for lines where operators need frequent physical access to the palletizing station, such as in promotional or custom-format packing.
The table below compares the three Cybernetik bottle palletizer configurations against the technical parameters that determine the right fit for a bottling line.
Bottle case and box types palletized
Pallet formats and specifications
Integration scope within the bottling line
Cybernetik packaging engineering team
Bottled Beverages: Water, juice, CSD, energy drink and RTD (ready-to-drink) manufacturers running 800–1,200+ cases per hour where palletizer throughput must match filler cadence across continuous shifts.
Dairy: Milk, flavoured dairy, drinking yogurt and dairy alternative bottling where hygiene build, case sensitivity and shift-long throughput stability define the palletizer specification.
Pharmaceuticals and Nutraceuticals: Bottled OTC, supplement and syrup packaging where GMP-grade construction, tamper-evident downstream handling and audit-grade batch traceability are required.
Personal Care and Home Care: Shampoo, lotion, household cleaner and personal care bottling with multi-SKU production and frequent pallet format changes between bottle sizes and retail cartons.
Chemicals and Lubricants: HDPE bottle lines for lubricants, chemicals and agrochemicals where payload capacity, operator separation and sealed transport to dispatch are primary requirements.
Cybernetik’s bottle palletizing system is engineered from verified technical specifications, not catalogue claims. Every advantage below reflects a confirmed parameter from the live product portfolio.
Simultaneous Multi-Box Picking: Up to 3 boxes palletized per arm cycle , the highest simultaneous-pick capability in the standard configuration, reducing total arm cycles per pallet and increasing sustained throughput.
Servo and Pneumatic Gripper Options: End-of-arm tooling available in servo-driven and pneumatic configurations, adaptable across corrugated, rigid and handle-with-care box formats without cross-contamination of grip force.
Automatic Pallet Dispenser: Up to 10-pallet magazine capacity releases one pallet at a time, keeping the palletizing station fed for extended runs without operator intervention between pallet loads.
Recipe-Driven Matrix Formation: HMI recipe storage for all SKU pallet matrix patterns, including layer rotation, pattern variation and stack height , switchable from the operator panel in operator-selected time.
ISO 12100 Safety Build: Risk assessment per ISO 12100, enclosed guarding and interlocked access points engineered into every configuration , meeting international safety standards for beverage, food and pharma line environments.
Upstream and Downstream Integration: Native integration with upstream case packing lines and downstream stretch-wrap systems under shared line control , eliminating the handoff gaps that standalone palletizer purchases typically defer to integration consulting.
A bottle palletizer is a tertiary packaging machine that takes sealed corrugated cases of bottles from an upstream conveyor and stacks them onto pallets in a recipe-defined layer-by-layer matrix for storage or dispatch. It sits at the end of the bottling line between the case packer and the stretch-wrap and dispatch stage.
Cybernetik’s six-axis robotic bottle palletizer delivers up to 1,200 boxes per hour with a 150 kg payload and simultaneous picking of up to 3 boxes per cycle. Gantry configurations reach higher throughput on single-SKU high-volume lines; cobot configurations serve lower-throughput operator-proximate applications.
Standard wooden, plastic and metal pallets in 1200 x 1200 mm, 1200 x 1000 mm and 1145 x 1145 mm formats, with customisable dimensions. The automatic pallet dispenser holds up to 10 pallets per magazine load. Completed pallet stack height reaches up to 1,800 mm.
Cybernetik’s bottle palletizer integrates with the upstream case packer for bottles through shared PLC logic, synchronizing infeed conveyor speed to the upstream output cadence in real time. Recipe changes on the case packer propagate to the palletizer automatically, keeping both machines aligned on SKU, case dimensions and pallet matrix pattern.
