Robotic Palletizers: Cost Breakdown, Configuration Guide and ROI Framework

.
15 min read

On this page

Key takeaways

  • A robotic palletizer is not a single product; a gantry system handling 210 units/hour at 10 kW and a six-axis system handling 1,200 boxes/hour with a 150 kg payload and full ISO 12100 enclosure are both robotic palletizers but serve entirely different requirements and budgets.
  • Throughput and payload are the primary cost drivers; increasing either requires greater arm capability, motor sizing, control complexity, and safety engineering, making over-specification one of the most common procurement mistakes.
  • Automation scope determines the real investment; a standalone palletizer may appear cheaper, but integration consulting, conveyor modifications, and PLC bridging often increase the total installed cost.
  • Safety architecture follows operational risk; full ISO 12100 enclosures, light curtains, and collaborative safety systems are application-specific requirements, not interchangeable budget options.
  • An automated tool changer allows a single six-axis robotic palletizer to handle bags, boxes, and drums, eliminating the need for multiple dedicated palletizing systems.
  • When manual labour exceeds 20% of end-of-line costs, pallet instability causes transport claims, throughput is constrained, injury risks increase, or new case dimensions cannot be accommodated, robotic palletizing typically delivers a 12–24 month payback for six-axis systems and 12–18 months for gantry systems.

Nobody publishes robotic palletizer prices, and there is a reason that goes beyond competitive sensitivity. The same procurement request, ‘we need a robotic palletizer’, can generate quotes that differ by a factor of five depending on throughput tier, payload class, format handled, automation scope and safety architecture. A gantry palletizer moving 210 units per hour on 10 kW of power with one operator is a robotic palletizer. A six-axis system picking 1,200 boxes per hour with a 150 kg payload, automated pallet dispensing, servo grippers and full ISO 12100 enclosure is also a robotic palletizer. Comparing their price tags without comparing their specifications is comparing two entirely different engineering solutions to different production problems.

This guide is the cost breakdown and buying framework that makes robotic palletizer investment decisions defensible. It walks through the five engineering factors that move the quote, the three configuration tiers Cybernetik builds with verified specifications, the total cost of ownership model that usually favours robotic palletizing over manual operation within 12 to 24 months, and the buying checklist that ensures your RFQ generates comparable quotes rather than incommensurate ones. If your last robotic palletizer evaluation felt like guesswork, the framework below replaces it with engineering.

What Are Robotic Palletizers, and Why Does Cost Vary So Widely?

Robotic palletizers are automated tertiary packaging machines that use one or more articulated robotic arms, six-axis, gantry, delta or collaborative , to pick packed units from an upstream conveyor and stack them onto pallets in recipe-defined layer patterns. Unlike conventional high-level palletizers that use fixed mechanical sweeps and pushers, robotic palletizers define their stacking motion in software, making them inherently flexible across formats, pallet sizes and matrix patterns.

The cost variation in robotic palletizers reflects genuine differences in engineering scope. A gantry robotic palletizer is a 3-axis servo system with a compact footprint, light curtain safety and a single operator for pallet changeover; it delivers 210 units per hour on 10 kW of power and is specifically suited to operations handling up to 1,500 units per day at low capital cost. A six-axis robotic palletizer is a full articulated arm system with payload up to 150 kg, throughput up to 1,200 boxes per hour, simultaneous multi-unit picking, servo and pneumatic gripper options, automated pallet dispensing and full ISO 12100 enclosed guarding. These are not the same machine at different price points; they are different engineering solutions to different production volumes.

Cybernetik’s robotic palletizer portfolio spans all three tiers, six-axis, gantry and cobot, on a common platform philosophy: modular design for plant layout, recipe-driven HMI for SKU flexibility, and verified technical specifications published per configuration rather than estimated. The buying framework below uses these tiers to anchor the cost comparison.

Five Engineering Factors That Drive Robotic Palletizer Cost

1. Rapid Multi-SKU Changeovers

Throughput and payload are the primary cost drivers because they determine the robotic arm class. Cybernetik’s bag palletizer delivers up to 600 bags per hour at 50 kg payload; the box palletizer reaches 1,200 boxes per hour at 150 kg payload; the gantry processes 210 units per hour at lower payload. Each step up the throughput and payload ladder adds arm capability, motor sizing, control architecture and safety engineering, all cost-bearing. Specifying a higher throughput tier than the line actually needs is the most common source of over-investment in robotic palletizer procurement.

2. Format Handled and End-of-Arm Tooling Complexity

A bag palletizer needs a gripper engineered for flexible, deformable surfaces with variable fill levels; a box palletizer needs a gripper designed for rigid corrugated edges with predictable geometry; a drum palletizer needs a different attachment mechanism entirely. End-of-arm tooling is a significant cost component, and an automated tool changer that enables the same robotic arm to handle multiple formats adds meaningful capex but often lowers TCO for operations running mixed formats. Cybernetik’s optional automated tool changer enables one robot to palletize bags, drums and boxes from the same base unit.

3. Automation Scope: Standalone vs Integrated Line

A robotic palletizer quoted standalone, robot arm, conveyor, basic controls, costs less upfront than one quoted as part of an integrated line with automated pallet dispenser (up to 10 pallets per magazine), downstream stretch-wrap coordination, upstream case packer integration and unified PLC. The integration scope changes the quote materially; but plants that buy standalone palletizers typically spend the capex saving plus more on integration consulting, conveyor retrofits and PLC bridging downstream. Cybernetik specifies integration scope inline to make the comparison honest.

4. Safety Architecture: Enclosure, Light Curtain or Cobot

Full ISO 12100 enclosed guarding with interlocked access gates is the highest-cost safety specification and the right one for high-throughput environments where forklifts and robotic arms share a floor zone. Light curtain safety, used on Cybernetik’s gantry palletizer, costs less and installs more compactly, but limits the robotic arm’s operating envelope. Cobot safety (inherent collision detection, no guarding required) costs less again but limits throughput and payload. Safety architecture is not a cost lever to pull carelessly; it is a regulatory and operational requirement that follows the actual risk profile of the installation.

5. After-Sales Scope: Installation, Training and Service Network

Robotic palletizer quotes differ significantly in after-sales scope. A quote that excludes installation, commissioning and operator training is cheaper on paper; the hidden cost is the time from delivery to production readiness, which typically runs weeks longer on unsupported installations. Cybernetik’s robotic palletizer quotes include installation, commissioning, operator and maintenance training, SOP handover and access to a global service network across more than thirty countries , making the after-sales scope explicit in the comparative evaluation.

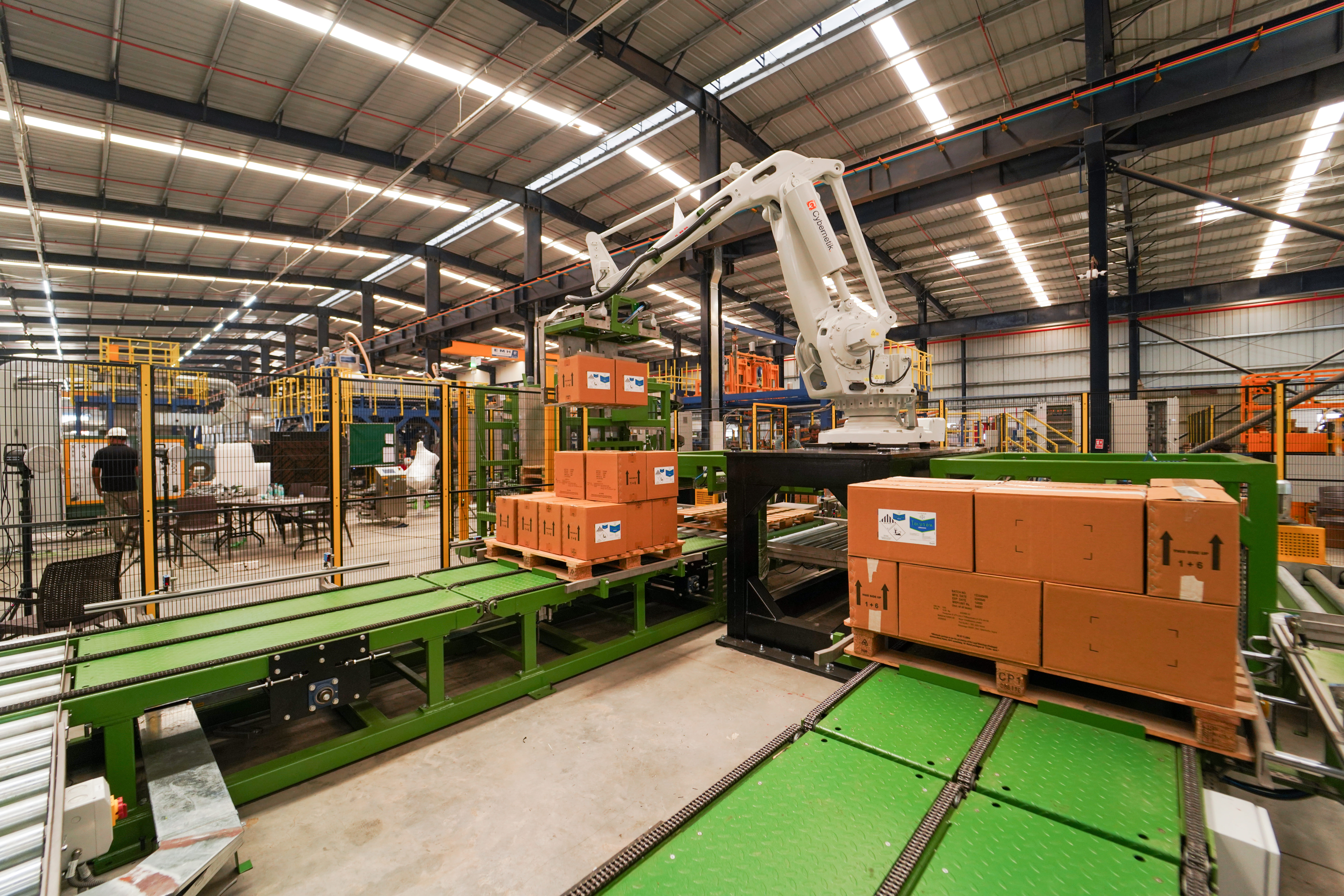

Multiple Orientation Robotic Carton Palletizer

Three Robotic Palletizer Configurations by Cost Profile

Cybernetik’s robotic palletizer portfolio spans three cost tiers. Understanding what each tier delivers , and what it trades off , is the core of the buying decision.

Six-Axis Robotic Palletizer , Highest Throughput, Lowest TCO at Scale

Six-axis articulated arm, payload up to 150 kg (boxes) or 50 kg (bags), throughput up to 1,200 boxes per hour or 600 bags per hour, simultaneous multi-unit picking, servo and pneumatic gripper options, automated pallet dispensing with 10-pallet magazine, stack height up to 1,800 mm, footprint approximately 28 m², power 28.7–35 kW, ISO 12100 full enclosure. Highest upfront capex in the portfolio; lowest total cost of ownership at production volumes above 500 units per hour. The right configuration for high-throughput manufacturing, beverage bottling, large 3PL facilities and chemical packing lines.

Gantry Palletizer , Lowest Capex, Lowest Opex for Mid-Volume

3-axis servo-actuated gantry system, 210 units per hour, 9 seconds per cycle, maximum pallet height 2,000 mm, up to 10 SKU matrix formations via rotary axis end-of-arm tooling, 10 kW power, one operator for semi-automatic pallet changeover, compact footprint with light curtain safety. Suited to operations handling up to 1,500 units per day. Lowest capital cost and lowest running cost in the six-axis tier equivalent; easiest to integrate into existing lines with low footprint. The right configuration for mid-volume food, pharma and 3PL operations where payback speed matters more than peak throughput.

Cobot Palletizer, Operator-Proximate Flexible Deployment

Collaborative robot arm with inherent safety, no full guarding enclosure required, operator-proximate operation, lower payload and throughput than six-axis. Designed for environments where operators need frequent physical access to the palletizing area, where floor layout makes full enclosure impractical, or where throughput requirements are low and SKU variety is high. Cybernetik’s cobot palletizer configuration suits low-volume flexible operations including artisan food production, pharma distribution and co-packing facilities.

Robotic Palletizer Configuration Cost Comparison

The table below maps the three robotic palletizer configurations to the cost-bearing specifications that determine the price tier.

SpecificationSix-Axis RoboticGantryCobot
Throughput (boxes)Up to 1,200 boxes/hr210 units/hrLow throughput
Throughput (bags)Up to 600 bags/hrUp to 210 bags/hrLow throughput
PayloadUp to 150 kg (boxes), 50 kg (bags)Format-matchedLow (operator-safe)
Power Consumption28.7–35 kW10 kW~3–5 kW
Max Stack Height1,800 mm2,000 mm~1,500 mm
Safety Architecture
Full ISO 12100 enclosure		Light curtains + guardsInherent cobot safety
Operators Required1 (supervision)1 (pallet changeover)1 (proximate)
CAPEX ProfileHighest in portfolioLowerLowest
OPEX at VolumeLowest (throughput/kW)Very low (10 kW)Low
TCO Payback12–24 months at scale12–18 months mid-vol18–30 months low-vol

Formats Cybernetik’s Robotic Palletizers Handle

Six-axis robotic palletizer format range

  • Boxes and cartons, corrugated RSC cases, rigid cases and handle-with-care boxes up to 150 kg payload
  • Bags and sacks, gusseted bags, flat-bottom bags, polyethylene and polypropylene sacks up to 50 kg payload
  • Drums, up to 120 kg payload at up to 12 drums per minute
  • Pails and buckets, up to 80 kg payload at up to 28 pails per minute
  • Mixed formats, automated tool changer option enables one robot to handle bag, box and drum variants

Gantry palletizer format range

  • Bags, sacks and bales, food grains, fertilisers, chemical powders, pharmaceutical powders
  • Boxes and cartons, biscuit packs, snack pouches, FMCG cases at 210 units per hour
  • Pails and tins, lubricants, paints, specialty chemicals
  • Up to 10 SKU matrix formations per machine via rotary axis end-of-arm tooling
  • Multiple pallet sizes: 1200 × 1200 mm, 1200 × 1000 mm, 1145 × 1145 mm

Pallet handling across all configurations

  • Pallet types: wooden, plastic, metal across standard and custom dimensions
  • Automatic pallet dispenser: up to 10 pallets per magazine load
  • Completed pallet transfer to downstream stretch-wrap via roller conveyor
  • Stack height: up to 1,800 mm (six-axis) or 2,000 mm (gantry)
  • Recipe-defined layer patterns, rotation sequences and interlayer sheet options

“A robotic palletizer doesn’t just automate pallet stacking; it transforms end-of-line operations into a safer, faster, and more predictable process.“

Cybernetik packaging engineering team

.

See it in action

The Cybernetik Robotic Palletizer Buying Advantage

Cybernetik’s robotic palletizer portfolio is designed to be bought honestly, every specification below is verifiable from the live product pages, not from catalogue estimates.

  • Published, Verified Specifications: Throughput, payload, power and footprint figures published from production-deployed configurations, giving buyers an honest baseline for cross-vendor comparison, not a controlled-demonstration headline.
  • Three-Tier Portfolio Under One Vendor: Six-axis, gantry and cobot configurations from a single vendor means one procurement relationship, one set of spare parts standards and one service network regardless of which tier fits the operation.
  • Automated Tool Changer Option: The optional automated tool changer on the six-axis platform enables one robotic arm to palletize bags, boxes and drums from the same base unit, the single most effective capex-reduction lever for operations running mixed formats.
  • Low-OPEX Gantry for Mid-Volume: 210 units per hour at 10 kW with one operator for pallet changeover, the gantry configuration delivers robotic palletizing at the lowest operational cost per unit in the portfolio.
  • Integration-Ready Architecture: Every configuration integrates with upstream case packing lines and downstream stretch-wrap systems under shared PLC logic, eliminating the integration consulting cost that standalone-quoted palletizers defer.
  • Turnkey with Global After-Sales: Installation, commissioning, operator training, maintenance certification and SOP handover included. Global service network from four manufacturing facilities across more than thirty countries.

Industries Evaluating Robotic Palletizer Cost Against Manual and Conventional Alternative

Food Manufacturing: Grain, snack, dairy and packaged food plants where manual pallet stacking is the last un-automated stage; six-axis and gantry configurations both serve within the same portfolio.

  • Chemicals and Agrochemicals: Drum, pail and bag palletizing for fertilisers, lubricants and specialty chemicals where payload class and operator safety separation drive the configuration decision.
  • Pharmaceuticals and Nutraceuticals: Box and carton palletizing for dispensaries, contract manufacturers and distribution centres where ISO 12100 compliance and batch traceability are documentation requirements.
  • FMCG and Consumer Goods: High-SKU-velocity multi-format lines where gantry or six-axis palletizers with recipe-driven matrix switching handle promotional, export and retail formats from the same asset.
  • 3PL and Logistics Operations: Third-party logistics facilities where multi-client palletizing with separate pallet building for different clients, on the same physical robotic arm, drives the ROI case.

Want to know more about our solution?

Book a call

Frequently asked questions

A robotic palletizer is an automated tertiary packaging machine that uses an articulated robotic arm , six-axis, gantry or collaborative , to pick packed units from an upstream conveyor and stack them onto pallets in a software-defined layer pattern. Unlike conventional palletizers with fixed mechanical sequences, robotic palletizers reconfigure their stacking logic through recipe selection, making them flexible across formats, pallet sizes and matrix patterns.

Where manual palletizing represents more than 20 percent of end-of-line labour cost, and the operation shows symptoms of pallet instability, throughput constraints or injury risk, the ROI on a Cybernetik robotic palletizer typically runs 12 to 24 months on the six-axis tier (at high volume) and 12 to 18 months on the gantry tier (at mid-volume), calculated on labour, transport damage, injury and throughput-recovery savings combined.

Where manual palletizing represents more than 20 percent of end-of-line labour cost, and the operation shows symptoms of pallet instability, throughput constraints or injury risk, the ROI on a Cybernetik robotic palletizer typically runs 12 to 24 months on the six-axis tier (at high volume) and 12 to 18 months on the gantry tier (at mid-volume), calculated on labour, transport damage, injury and throughput-recovery savings combined.

A six-axis robotic palletizer uses an articulated arm with spherical motion envelope, payload up to 150 kg and throughput up to 1,200 boxes per hour. A gantry palletizer uses a 3-axis linear servo system with compact footprint, throughput of 210 units per hour, 10 kW power and one operator for pallet changeover. The gantry costs less to buy and run; the six-axis delivers higher throughput and multi-format flexibility through a broader motion envelope.

Yes. Cybernetik’s six-axis robotic palletizer with automated tool changer can palletize bags, boxes and drums from the same base unit, switching formats through tool change without a separate machine per format. The gantry configuration supports up to 10 SKU matrix formations via rotary axis end-of-arm tooling , both options reduce capex for multi-format operations significantly.

{
