Traditional manufacturing palletizers were built for one product, one case size, one pallet pattern , running the same cycle all day with a single operator watching from the side. That model worked when a bottling plant shipped one SKU per pallet and a 3PL handled one client at a time. E-commerce finished that era. A fulfilment centre now might dispatch twelve different case dimensions in the same hour, with pallet configurations changing every fifteen minutes as orders for different retail customers are built simultaneously. A box palletizer specification that was adequate for traditional dispatch operations is inadequate by a factor of three for e-commerce and 3PL throughput.
This guide walks through what makes e-commerce and third-party logistics operations distinctly demanding for box palletizers, the engineering choices Cybernetik makes in its automatic box palletizer configurations to meet those demands, and the verified technical specifications for each configuration type. Whether you are setting up a new fulfilment operation, expanding an existing 3PL facility, or converting a traditional manufacturing end-of-line into a multi-client dispatch stage, the framework below maps the right box palletizer specification to the problem you actually have.
A box palletizer is an automated tertiary packaging machine that picks sealed boxes or cases from an upstream conveyor and stacks them onto pallets in a defined layer-by-layer pattern for storage, dispatch or cross-docking. In a traditional manufacturing setting, the box arriving at the palletizer is always the same dimension, always the same weight, always destined for the same pallet matrix. In an e-commerce or 3PL setting, none of those three assumptions holds.
E-commerce fulfilment handles variable box dimensions across every despatch wave. A consumer electronics shipment and a personal care shipment do not share a case size; a B2C direct parcel and a B2B retail case do not share a pallet height. The box palletizer in an e-commerce operation must identify the incoming case, recall the correct pallet matrix recipe, and execute that recipe , potentially changing after every few cases. That is a fundamentally different operating mode from a traditional single-SKU manufacturing palletizer, and it demands a different specification approach.
Cybernetik’s automatic box palletizer portfolio addresses e-commerce and 3PL requirements through recipe-driven operation, adaptable end-of-arm grippers, multi-format pallet handling and compact footprint designs that fit warehouse layouts rather than dedicated factory floors. The six-axis robotic box palletizer handles up to 1,200 boxes per hour at 150 kg payload with simultaneous picking of up to 3 boxes; the gantry palletizer handles up to 210 SKUs per hour at 9 seconds cycle time in a low-capex compact footprint suited to smaller 3PL operations. Both integrate with upstream case packing lines and downstream stretch-wrap under unified PLC control.
1. Variable Case Dimensions Across Every Despatch Wave
A traditional manufacturing palletizer is tuned to one case width, one case height, one case weight. Its gripper force, pick height and layer pattern are set once at commissioning. An automatic box palletizer for e-commerce must handle corrugated, rigid and handle-with-care boxes of varying dimensions across the same shift, switching pallet matrix recipes between case types in operator-selected time. Cybernetik’s box palletizer stores HMI recipes for all active box dimensions, reconfiguring end-of-arm tooling and matrix logic without mechanical reset.
2. Multi-Client Pallet Building for 3PL Operations
Third-party logistics operators frequently palletize for multiple brand clients simultaneously , building a retail pallet for Client A while a separate accumulation line feeds Client B. A box palletizer configured for multiline operation handles cases arriving from separate upstream conveyors, assigning each to the correct client pallet in the correct stacking pattern from the same physical robot arm. Cybernetik’s robotic box palletizer can be programmed to palletize box variants arriving on separate conveyors onto distinct pallets in the same cycle.
3. High-Frequency Recipe Changes Without Production Downtime
In a traditional facility, a SKU change might happen twice a day. In an e-commerce or 3PL operation, a recipe change might happen every fifteen to twenty minutes as despatch waves roll through different product categories. Cybernetik’s automatic box palletizer stores up to 10 SKU matrix formations , the gantry model up to 10 matrix configurations via rotary axis EOAT , and the six-axis model holds a full HMI recipe library switchable without production pause.
4. Seasonal Volume Spikes Without Proportional Operator Scaling
E-commerce throughput is not flat: peak season (festival periods, sales events, Q4) routinely triples dispatch volume against mid-year baseline. A palletizer sized to average throughput will starve peak operations; a palletizer sized to peak throughput will be over-specified at baseline. Cybernetik’s six-axis box palletizer at 1,200 boxes per hour with simultaneous 3-box picking gives the throughput headroom to absorb peak-season spikes without adding operators.
5. Compact Footprint for Warehouse Integration
E-commerce fulfilment centres and 3PL warehouses are not purpose-built factories. Aisle widths, racking proximity and pedestrian traffic zones all impose constraints that a palletizer designed for a manufacturing floor does not typically face. Cybernetik’s gantry palletizer offers a compact footprint with light curtain safety , no full enclosure required , and a reach envelope optimised for narrow warehouse bays. The six-axis model’s 3600 x 7880 mm footprint fits standard warehouse grid layouts.

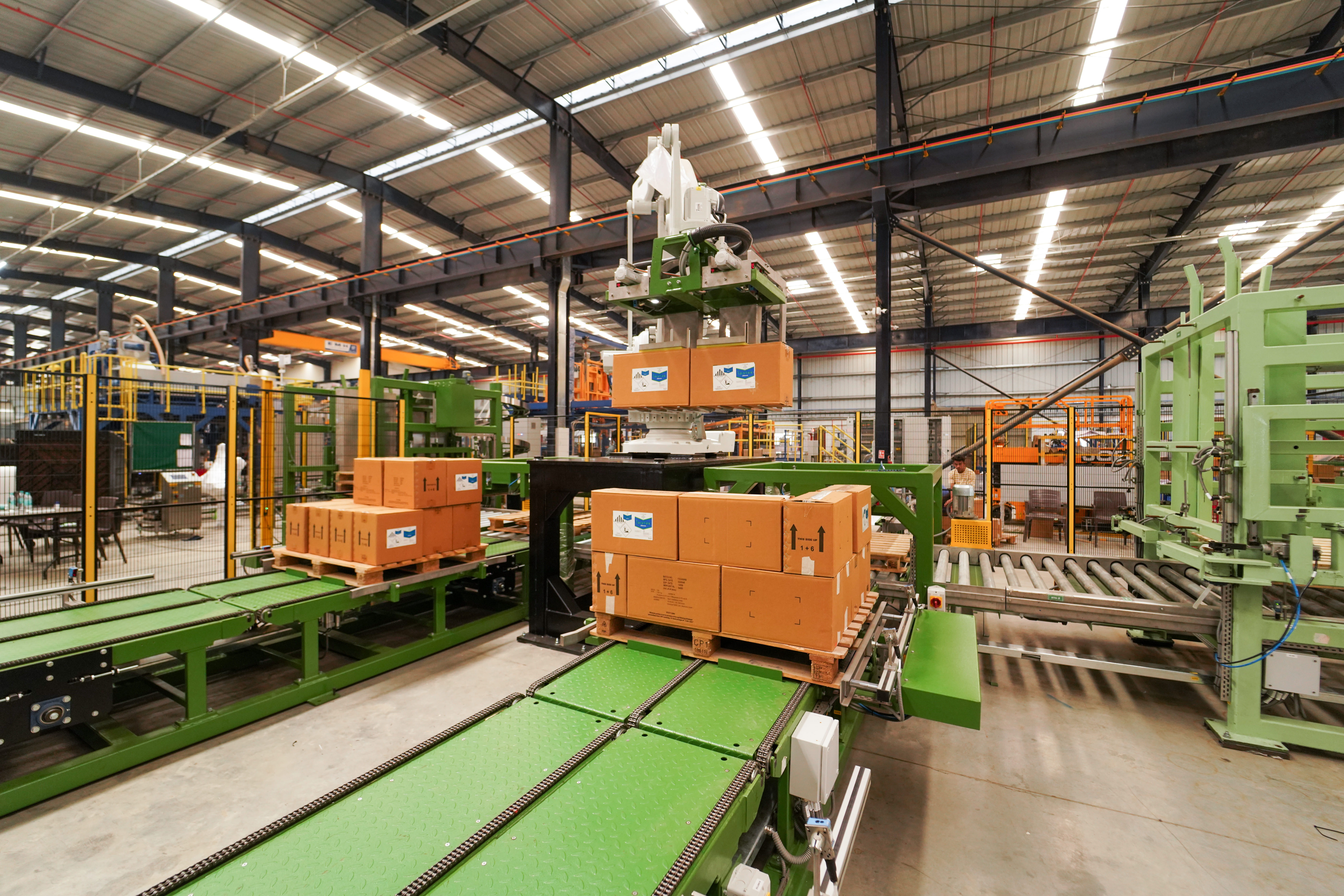

Multiple Orientation Carton Palletizer
Cybernetik builds box palletizers in three configurations that map to the throughput, footprint and SKU-flexibility demands of different e-commerce and 3PL operation sizes.

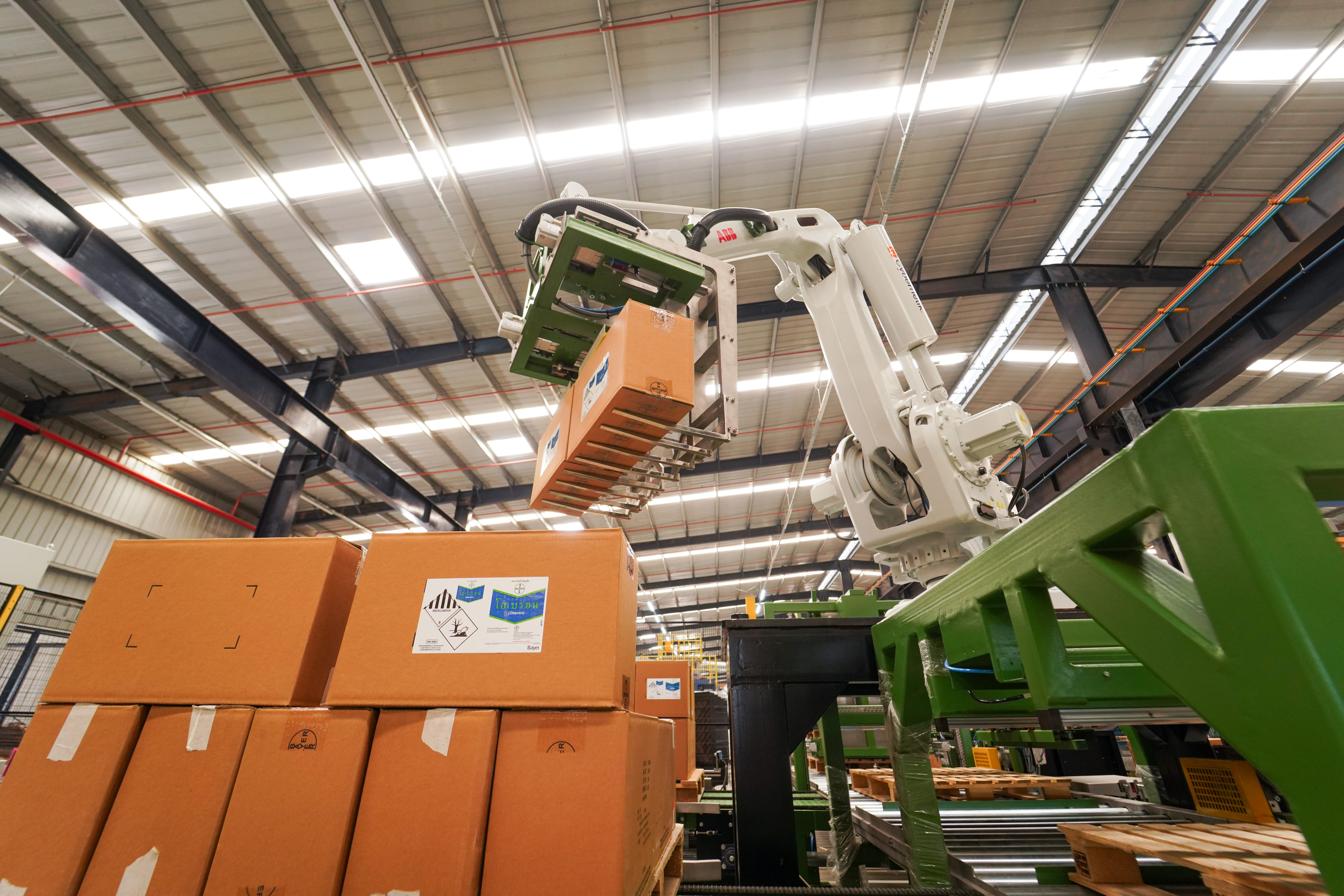

Six-Axis Robotic Box Palletizer , High-Throughput Multi-SKU
The primary configuration for high-throughput fulfilment operations and large-format 3PL facilities. Payload up to 150 kg, throughput up to 1,200 boxes per hour, simultaneous picking of up to 3 boxes, reach up to 3.1 m, stack height up to 1,800 mm. Full recipe-driven multi-SKU operation, servo and pneumatic gripper options for corrugated, rigid and handle-with-care box types, automatic pallet dispenser with 10-pallet magazine, and ISO 12100 safety guarding. Best for large 3PLs and high-volume e-commerce despatch facilities.
Gantry Box Palletizer , Compact Low-CAPEX for Mid-Size 3PL
Cybernetik’s gantry box palletizer delivers 210 SKUs per hour at 9 seconds cycle time, with 2,000 mm maximum pallet height and up to 10 SKU matrix formations via rotary axis end-of-arm tooling. The 3-axis servo-actuated system requires only 10 kW power and one operator for pallet changeover, with light curtain safety that allows compact installation without full enclosure. CAPEX is lower than six-axis, OPEX is lower than manual. Best for mid-size 3PL operations handling up to 1,500 SKUs per day.
Multiline Box Palletizer , Simultaneous Multi-Client Lines
For 3PL operations running two or more parallel inbound conveyor lines from different brand clients, Cybernetik configures multiline box palletizers where a single robot arm (or paired arms) handles cases arriving on separate conveyors, assigning each to the correct client-specific pallet in the correct recipe-defined matrix. This eliminates the need for a dedicated palletizer per client line, reducing both capital outlay and warehouse floor allocation per client.
The table below compares the three box palletizer configurations against the parameters most relevant to e-commerce and 3PL specification decisions.
| Specification | Six-Axis Robotic | Gantry (Compact) | Multiline |
|---|---|---|---|
| Throughput | Up to 1,200 boxes/hr | 210 SKUs/hr (9 s/cycle) | Line-count dependent |
| Payload | Up to 150 kg | Format-matched | Up to 150 kg |
| Simultaneous Pick | Up to 3 boxes | 1 box per cycle | 1–2 per arm |
| Max Pallet Height | 1,800 mm | 2,000 mm | 1,800 mm |
| SKU Matrix Formations | Full HMI recipe library | Up to 10 via rotary EOAT | Per-client recipes |
| Footprint | 3,600 × 7,880 mm | Compact; no full enclosure | Scaled to line count |
| Best Operation Size | Large 3PL / high-volume e-com | Mid 3PL / up to 1,500 SKU/day | Multi-client parallel lines |
Box and case types handled
Corrugated RSC cases , standard e-commerce despatch and B2B retail cases.
Rigid boxes , premium consumer electronics, FMCG gifting and luxury goods.
Handle-with-care cases , fragile contents, glass-packed consumer products.
Mixed-dimension batches , variable case sizes arriving from the same upstream case packing line.
Multi-depth cases , variable fill-height cases from fulfilment pick-and-pack operations.
Pallet formats and automatic handling.
Wooden pallets , 1200 × 1200 mm and 1200 × 1000 mm standard export and domestic formats.
Plastic and metal pallets , 1145 × 1145 mm and custom dimensions for hygienic applications.
Pallet magazine capacity: up to 10 pallets of 150 mm each; customisable per operation.
Automatic pallet dispenser releases one pallet per cycle without operator intervention.
Completed pallet stack height up to 1,800 mm (six-axis) or 2,000 mm (gantry).
E-commerce and 3PL integration scope
Upstream: shared PLC integration with case packing machine or fulfilment conveyor infeed
Case registration system for pick accuracy across variable-dimension incoming cases.
HMI recipe storage with full SKU matrix library for rapid format switching.
Downstream: roller conveyor transfer to stretch-wrap station and dispatch lane.
Safety: ISO 12100 enclosed guarding (six-axis) or light curtain (gantry) per configuration.
Cobot palletizer option for operator-proximate low-throughput 3PL stations.
Cybernetik packaging engineering team
Every specification below is drawn from verified Cybernetik product data , the numbers reflect production-ready configurations, not brochure claims.
A box palletizer is an automated machine that picks sealed boxes or cases from an upstream conveyor and stacks them onto pallets in a defined layer-by-layer pattern for storage, despatch or cross-docking. In e-commerce and 3PL operations, the box palletizer must handle variable case dimensions, multiple pallet matrix recipes and multi-client simultaneous palletizing , demands traditional single-SKU palletizers are not designed for.
An automatic box palletizer performs every step of the palletising cycle , case infeed, position reference, pick-and-place, layer formation and pallet transfer , under PLC control, without operator intervention between pallet loads. Cybernetik’s automatic box palletizer configurations span six-axis robotic (up to 1,200 boxes/hr) and gantry (210 SKUs/hr) types, both with HMI recipe storage for multi-SKU operation.
Cybernetik’s six-axis robotic box palletizer handles up to 1,200 boxes per hour with 150 kg payload and simultaneous picking of up to 3 boxes per cycle. The gantry box palletizer processes 210 SKUs per hour at 9 seconds per cycle , suited to mid-size 3PL operations running up to 1,500 SKUs per day.
Yes. Cybernetik’s robotic box palletizer can be programmed to palletize box variants arriving from separate upstream client conveyors onto distinct client pallets in the same operating cycle. This eliminates the one-palletizer-per-client model that limits 3PL scalability.
Cybernetik’s automatic box palletizer switches between stored HMI recipes in operator-selected time, without mechanical reset. The gantry configuration supports up to 10 SKU matrix formations via rotary axis end-of-arm tooling; the six-axis model holds a full library switchable from the operator panel.
